Name: Hydraulic Boom Length 196m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel
Brand: SHACMAN
Price: 1 USD

Place of Origin : SHAANXI,XIAN

Brand Name : SHACMAN

MOQ : 1

Price : Negotiable

Delivery Time : 35-55days

Color : Blue, Green, Yellow, White

Application : Construction/Warehouse/Terminals/Logistics/Rescue

Rated Lifting Moment : 360kN.m

Machinery Test Report : Provided

Oil Flow Volume : 63+50L/min

Max. Speed : 90km/h

Emission Standard : EURO 2

Crane type : Telescopic Straight Boom Crane

Contact Now

Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel

Vehicle Specifications

Feature	4x2 Model	6x4 Model	8x4 Model
Drive Type	4x2	6x4	8x4
Engine	WP10.300E22	WP10.340E22	WP10.380E22
Power	300hp	340hp	380hp
Emission Standard	EURO Ⅱ	EURO Ⅱ	EURO Ⅱ
Frame	870x300(8+5)mm	870x300(8+5+8)mm	870x300(8+5+8)mm
Wheelbase	5600mm	5775+1400mm	2100+4575+1400mm
Vehicle Speed Ratio	16T HD dual-stage 4.769	16T HD dual-stage 4.769	16T HD dual-stage 5.262

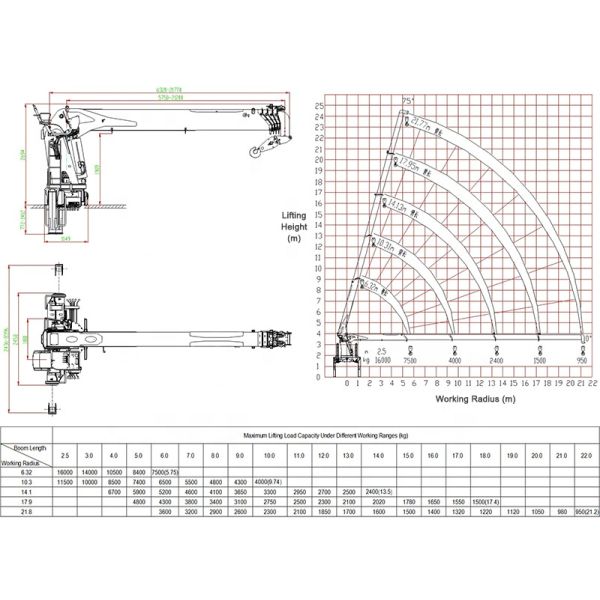

Crane Performance Specifications

Feature	4x2 Model	6x4 Model	8x4 Model
Max. Lifting Weight	5000/6300/7000kg	10000/12000kg	16000/18000/20000kg
Max. Lifting Torque	125/157.5/175kN*m	260/300kN*m	430/470/520kN*m
Max. Working Radius	11.2-13.5m	14.5-21.77m	21.77-23.7m
Max. Lifting Height	12.7-15.3m	16.3-23.1m	24.1-26.4m
Luffing Range	0°～75°	0°～75°	0°～75°
Slewing Angle	360° full turn	360° full turn	360° full turn
Max. Operating Pressure	22/23MPa	26/28Mpa	28Mpa
Oil Flow Volume	63L/min	63+50L/min	80+50L/min
Crane Weight	2200/2330/2420kg	3693/4300kg	6880/6970/7600kg
